Long range baby monitors

The product picture may differ from the actual product. only for your reference

AGPtek Wireless Camera Palm 2-Color Portable Video Baby Monitor

Brief Introduction
Consumption Current(Max.) 200mA
Battery Working Time 5 hours
Battery Charging Time 5 hours
Special Offers
  • 30 days money back30 days money back
  • 1 year warranty1 year warranty


Bookmark and Share


Description:

This Portable Video and Sound monitor with Two Cameras gives you the freedom to watch and listen to your baby while moving around the house. Having two cameras allows the convenience and flexibility of watching more than one area of the house without having to move the camera each time. Place one camera in your child's bedroom and the other in a favorite play area. The "Dancing Daisy" wireless camera's eye pleasing flower look, is a pleasant addition to your baby's room.The unique base of the camera allows it to stand alone on a flat surface or be clipped onto the edge of a door. The "Dancing Daisy" comes with a soft night light that can be switched on and off by touching the flower branch.The 8 infrared LEDs allow you to see in total darkness for up to 15 feet!This portable video and sound baby monitor operates on either AC or battery power, allowing more flexibility and freedom.This portable monitor is made possible by a 2.4GHz wireless system that includes a high-resolution camera with a built-in microphone and a large 2.5" color TFT-LCD screen monitor.The monitor includes an A/V out jack, meaning you can hook it up to a VCR or DVR to record high quality color camera footage.

Specification:



ITEM

Value

General

Transmission Frequency

ISM 2,400 ~ 2,483 MHz

Transmission Power

10mW/CE; 2mW/FCC

Unobstructed Effective Range

100m(Min.)

Spread Spectrum

FHSS

Modulation MODE

GMSK

Operating Temperature

-10OC ~ +50OC / +14OF ~ +122OF

Operatiing Humidity

15%~85%

Camera

Imaging Sensor Type

CMOS

Picture Total Pixels

720 x 576(PAL) 720 x 480(NTSC)

Minimum Illumination

0Lux(IR ON)

Night Vision Distance

3m(Min.)

View Angle

40°

Bandwidth

1.5MHz

Image Resolution

320 x 720 x 576(PAL)240@10fps

Sound Detection Sensitivity

>65dB

Consumption Current(Max.)

350mA

Power Supply

5VDC

Dimensions(W x D x H)

86°48°135 mm

Weight(About)

146g

Receiver

LCD Screen Type

2.36'TFT-LCD

Effective Pixels

480°250

Receiving Sensitivity

°-85dBm

Consumption Current(Max.)

200mA

Battery Working Time

5 hours

Battery Charging Time

5 hours

Power Supply

5VDC

Dimensions(W x D x H)

86 x 54 x 143 mm

Weight (About)

130 g

What's Include:

  • Wireless Camera x 2
  • Wireless Receiver x 1
  • AC Adapter For Camera x 2
  • AC Adapter For Receiver x 1
  • Lithium Battery For Receiver x 1
  • Video Cable x 1
  • Earphone x 1

Installation:

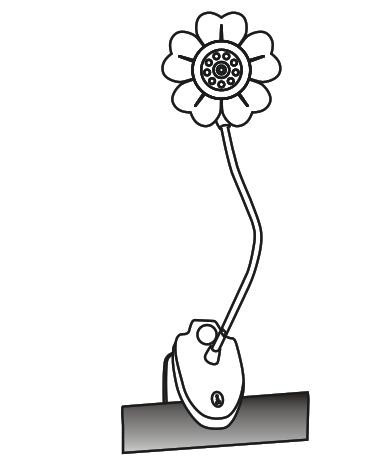

1. Locate the camera to a desired position and then adjust it to a suitable angle.

1

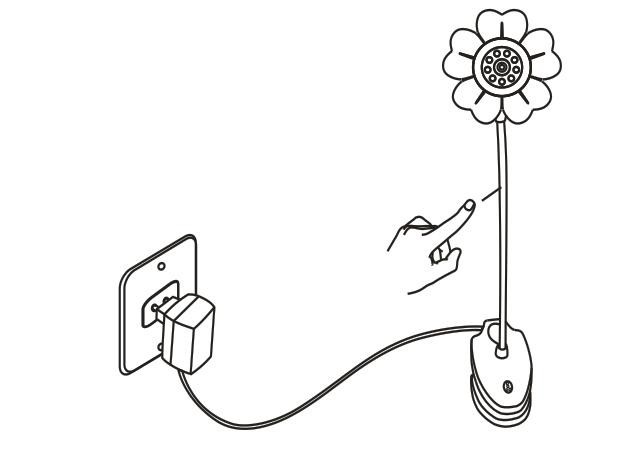

2. Connect the adapter to the camera.

2

Tip:
After the camera is powered on, touch the pole once with finger(s) to turn on the baby lights; touch again to turn off it; hold the pole and the lights will blink.

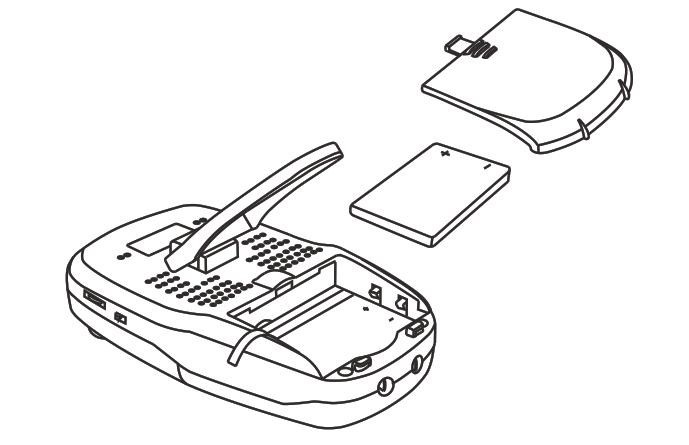

3. Install the accompanying Li-batteries to the battery compartment with its polarities matched.

3

Note:

  • This receiver can also be powered on by adapter.
  • The Li-battery will be charged after the adapter is plugged in, and the charge indicator lights in red during charging and will turn off after a full charge.
  • A full charge will take about 5 hours, which can power the receiverfor about 2 hours continuously.
  • You are recommended to have the battery fully charged before its first installation to optimize its life.
  • Do not burn or disassemble the Li-battery.
  • Do not short-circuit the battery, it may cause fire or electric shock.

4

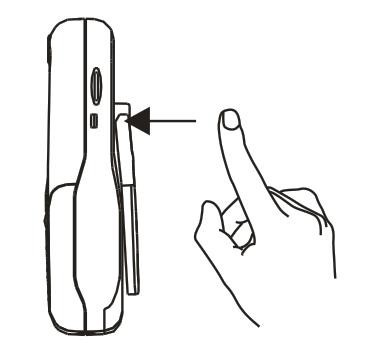

4. Slide the power switch to the ON position.

5

5. By pressing the channel button of the receiver to switch be the same channel of the camera, and then an image will appear on the screen.

6

NOTE:

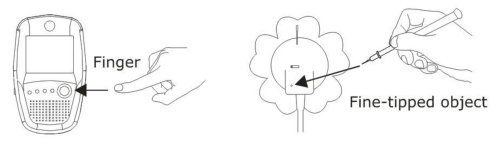

Generally the channel of the camera is matched to the receiver at factory. If it isn't, follow the steps below:
1) By pressing the channel button on the receiver and the check code button on back part of the camera at the same time for about 5 seconds, the receiver will automatically switch to the same channel of camera.
2) An image will appear on the screen, means the two devices are now matched to each other.

7

6. Tune the volume control to a desired level.

8

NOTE: for more clear pictures, please connect the receiver to a monitor/TV with the supplied video cable.

Cautions:

  • The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Turn off the camera/receiver if the system is not in use.
  • The camera/receiver can only be completely disconnected from themains by unplug the adapter.
  • Do not cut the DC power cable of the apparatus to fit with another power source.
  • Attention should be drawn to the environment aspects of battery disposal.

FCC information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference received, including
interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.

9
