Wireless Inspection Camera

The product picture may differ from the actual product. only for your reference

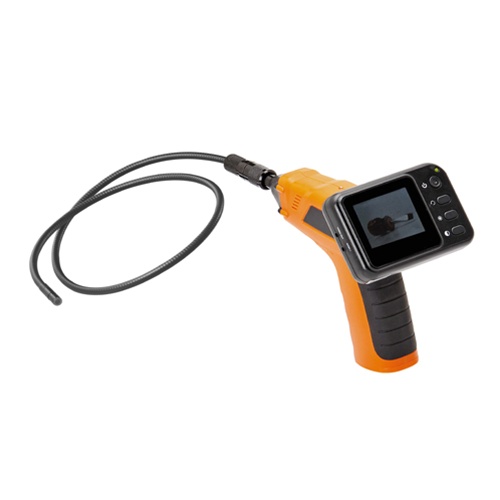

Borescope Wireless Pipe Inspection Camera (Tube Diameter:9mm)

Brief Introduction

No Description
Special Offers
  • 30 days money back30 days money back
  • 1 year warranty1 year warranty

PS: There is not shopping cart function on Our website. If you are interesting in this product please click the following button to brainydeal.com and buy it.


to buy at brainydeal.com



Feature:

  • Allows for easy visual inspections in hard to reach areas.
  • Mini water-proof camera with 1m(3 feet) flexible extended tube
  • Night Vision Range:1.5m(4.5 feet)
  • Waterproof Level: IP67 with Underwater
  • 2.5" TFT-LCD wireless monitor with rechargeable Li-battery
  • Lightweight, handhold design for easily find, diagnose and solve problems
  • 5 useful accessories includes: hook, mirror and magnet, pro storage and carried box, 3ft flex-tube.
  • Operating Temperature: -10°C to +50 °C/+14°F to +122°F
  • Operating Humidity (Max.): 15 to 85%RH



Description:







Camera
Model No.
 GB8803
Imaging Sensor
CMOS
Total Pixels
649*480
Horizontal View Angle
45 degree
Transmission Frequency
2468MHz
Minimum Illumination
0 Lux
Modulation Type
FM
Bandwidth
18MHz
Power Supply
4 AA batteries
Unobstructed Effective Range
10m
Tube Diameter
9mm
Waterproof Capacity
IP67(only for imager head)
Dimensions(W*D*H)

186*145*41(mm)

(Exclude Flexible Tube)
Weight(about)
450g
monitor
Model No.
GB7802
LCD Screen Type
2.36'' TFT-LCD
Effective Pixels
480*240
Video System
PAL/NTSC
Transmission Frequency
2468MHz
Exterior Supply Voltage
8V-24V DC
Consumption Current(Max.)
490mA
Video Output Level
0.9-1.3V p-p@75ohm
Receiving Sensitivity
<=-85dBm
Dimensions(W*D*H)
100*70*30(mm)
Weight(about)
140g
Operating Temperature
-10°C~+50°C/+14°F~+122°F
Operating Humidity(Max.)
15~85%Rh
